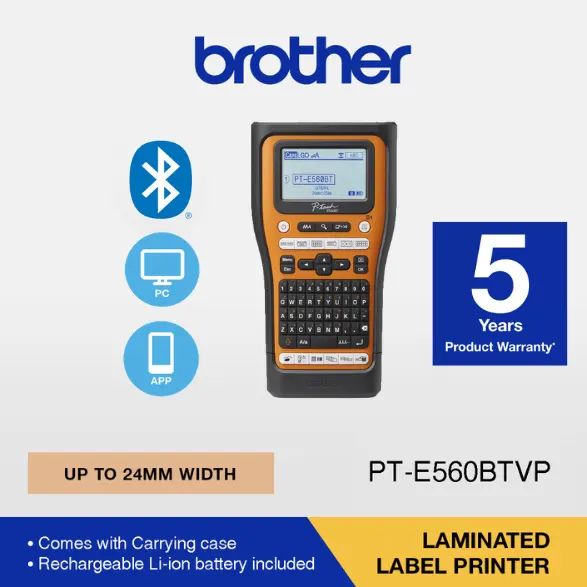

PT-E560BTVP – Industrial Labeller Printer

Basic Specs

Keyboard

QWERTY

Display Type

18 characters x 3 lines
(240 x 120 dots)

Media Type

TZe, HGe, HSe (Heat-shrink Tube)

Available Tape Widths

TZe: 3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
TZe-SL: 24mm
HGe: 6mm, 9mm, 12mm, 18mm, 24mm
HSe (Shrink ratio: 3:1): 5.2mm, 9.0mm, 11.2mm, 21.0mm

Product Dimensions (Width X Depth X Height)

132 mm × 244 mm × 80 mm

Print Speed

Using USB-PD Adapter: Up to 30mm/sec, Using Battery: Up to 20mm/sec

Print

Resolution

180 dpi / 128 dot

No. Of Printable Lines

24 mm tape: 1 - 7 lines
18 mm tape: 1 - 5 lines
12 mm tape: 1 - 3 lines
9 mm tape: 1 - 2 lines
6 mm tape: 1 - 2 lines
3.5 mm tape: 1 line

Number of Characters

684 characters

Number of Symbols

476

Barcode

1. CODE39
2. ITF 2/5
3. EAN13
4. EAN8
5. UPC-A
6. UPC-E
7. CODABAR
8. GS1-128 (UCC/EAN128)
9. CODE128
10. QR Code (model 1, model 2, micro QR, GS1)
11. Datamatrix
※ GS1 QR codes will be transferred as micro QR codes.

1D barcodes only for transferred templates:
1. ISBN-2
2. POSTNET
3. Laser Bar Code
4. GS1 Databar (RSS)
5. Inteligent Mail Barcode

2D barcodes only for transferred templates:
1. PDF417
2. MaxiCode
3. Aztec code
4. GS1 Composite

Numbering

Yes (1 - 99)

Connectivity

Connectivity

USB version 2.0 (Full Speed), Bluetooth 5.0 (SPP/iAP)

Media

Maximum Tape Width

Up to 24mm

Printing Width

Up to 18.0mm

Functions

Cutter

Auto Full and Half

Multi Block Printing

Yes

Copy Printing

Yes

Mirror Printing

Yes

Preview

Yes

Weight

Weight

1.05 kg

Memory

File Storage

Memory Buffer Size

Up to 1800 characters

Power

Power Source

Rechargeable Li-ion Battery (BA-E001)
Optional: USB-PD Adapter for USB Type-C (PA-AD-004)

Auto Power-Off

Li-ion Battery (BA-E001): 20 minutes
USB-PD Adapter for USB Type-C (PA-AD-004): 30 minutes
